MS Glue Production Line

What is MS glue?

MS glue is a high-performance, environmentally friendly chemically curing adhesive. It emerged in the 1980s. After more than 40 years of engineering verfication, MS glue has good effects in filling, sealing and waterproofing applications. It is currently the mainstream new type of building sealant at home and abroad.

Technical Advantages

1. Vacuum sealed system to ensure stable quality
2. High-efficiency dispersion and mixing technology
3. Precise temperature control system
4. High degree of automation, saving manpower
5. Modular design, flexible expansion
6. Environmentally friendly emission control
7. Strong material adaptability

MS Glue Raw Material

MS Glue Production Process

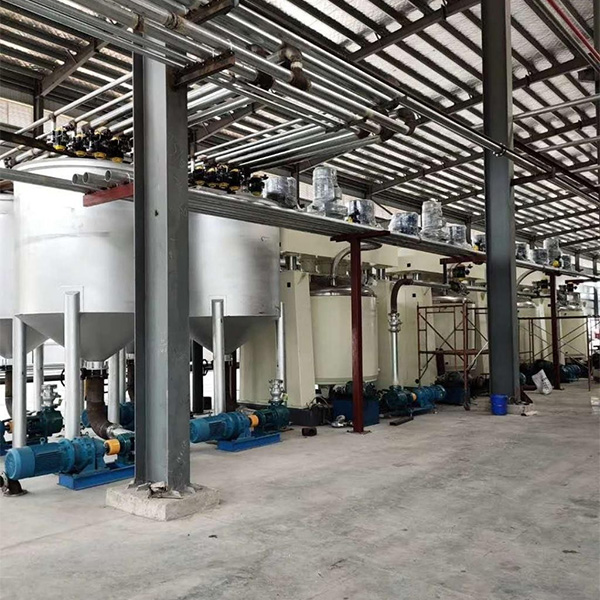

MS Glue Production Line Equipment Configuration

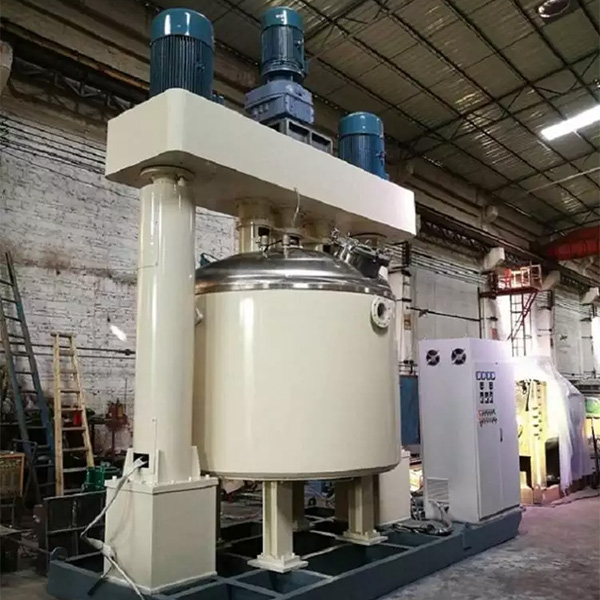

1. 5L laboratory double planetary mixer (optional)

2. Industrial oven

3. Three-roller grinder

4. Reactor (for base material mixing and dehydration)

5. Powerful dispersing mixer

6. Conveying control system

7. Filling machine

Design Highlight

1. Moisture-proof process guarantee

• Full nitrogen protection: Nitrogen filling of reactor, storage tank and pipeline (oxygen content <10ppm)
• Raw material pipeline heating: Maintain 50-60℃ to prevent condensation and avoid silane pre-curing.

2. Efficient mixing system

• Butterfly blades and dispersing discs are used for high viscosity filler dispersion (such as calcium carbonate).
• "山"-shaped blade gently mixes silane coupling agent (to prevent local overheating).
• Mirror polished cylinder: Roughness Ra≤0.4μm, reducing wall sticking loss.

3. Intelligent control

• PLC automatic adjustment: Temperature, vacuum degree, speed linkage control.
• Online detection: Viscosity sensor + moisture meter (real-time warning of process abnormalities).

**If your budget is limited, JCT can also provide semi-automatic MS glue production line.
